U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing

Model Number : Customizable

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : 2.5~2.6g/cm³

Flexural Strength : 70-90 MPa

Size : Customized

Heat Conduction : 23.26 W/(m·℃)

Tensile Strength : 39.2～49 MPa

Max. Service Temp. : 1500℃

Linear Thermal Expansion Coefficient (20-1500℃) : 5.2×10⁻⁶/℃

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,,

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

Silicon Carbide SIC Heating Elements U Type For Muffle Furnace
Our U-Shape (U-Type) Silicon Carbide (SiC) heating elements are high-performance, cost-effective solutions designed for extreme environments in muffle furnaces and various electrical furnaces. Manufactured from high-purity silicon carbide, these elements offer exceptional thermal stability, minimal deformation, and a long service life, even at temperatures up to 1600°C in air without a protective atmosphere.
Key Features & Benefits
  • High-Temperature Performance: Reliable operation in environments ranging from 600°C to 1600°C
  • Superior Oxidation Resistance: Excellent resistance to oxidation, ensuring durability and consistent performance
  • Customizable Sizing: Available in custom lengths and configurations (OEM support available) to perfectly fit your specific furnace design and requirements
  • High Thermal Conductivity: Efficient heat transfer with thermal conductivity of >18 W/m*K at 800°C
  • Mechanical Strength: High cold crushing strength (150 MPa) and good rupture strength at elevated temperatures (>50 MPa at 1200°C)
  • Low Thermal Expansion: Coefficient of thermal expansion <4.7x10⁻⁶/°C minimizes deformation and extends lifespan
  • Easy Installation & Maintenance: Designed for straightforward installation and reliable long-term use
Applications
  • Metallurgy Processing
  • Ceramics Firing and Sintering
  • Glass Manufacturing
  • Laboratory & Research Muffle Furnaces
  • Mechanical Testing Furnaces
  • Analysis and Testing
  • Semiconductor Processing
Technical Specifications
Property Value / Description
Type U-Shape (U Type)
Usage Muffle Furnace, Electrical Furnace
Max Operating Temperature 1600°C (in air)
SiC Content > 85%
Si₃N₄ Content > 22%
Fe₂O₃ Content < 0.5%
Bulk Density 2.6 - 2.7 g/cm³
Apparent Porosity < 16%
Cold Crushing Strength 150 MPa
Rupture Strength (at 1200°C) > 50 MPa
Thermal Conductivity (at 800°C) > 18 W/m*K
Thermal Conductivity (at 1200°C) > 14 W/m*K
Thermal Expansion Coefficient < 4.7 x 10⁻⁶ /°C
Custom OEM Services Available: We specialize in producing custom-sized silicon carbide heating elements to meet your exact specifications. Contact us with your requirements.

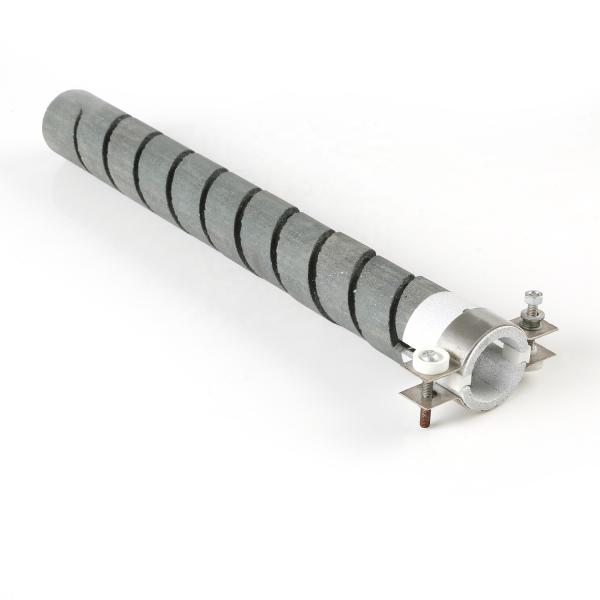

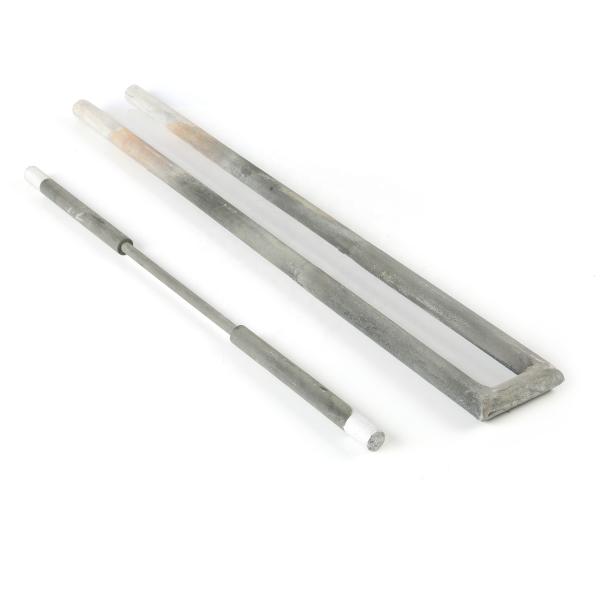

Product Images
U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
Packaging & Shipping
U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
